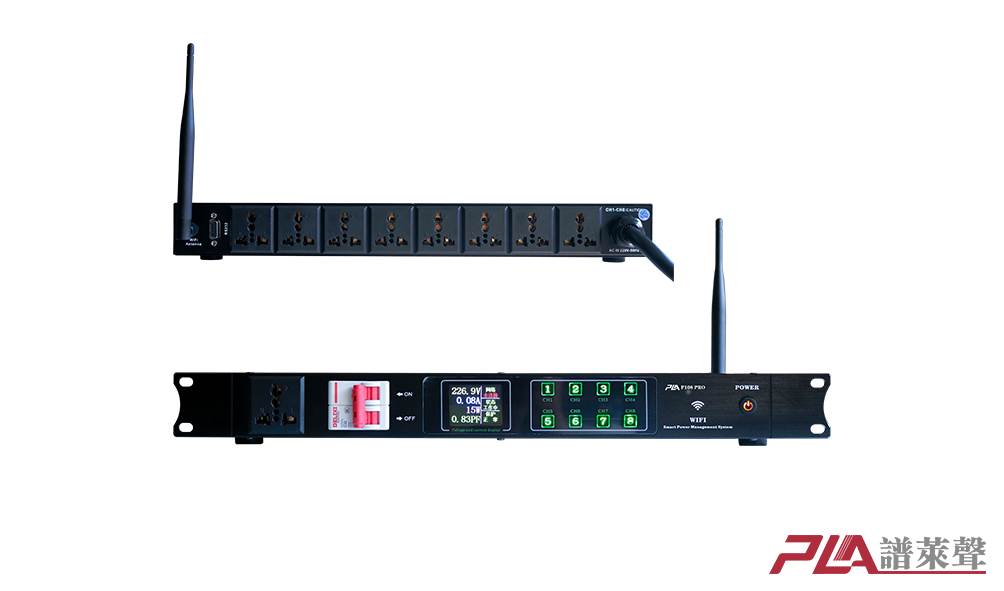

P108 Pro

WiFi power sequencer

WiFi intelligent sequencer with color screen display, remote control through mobiles app, 8-channel controllable output, one phones can manage multiple devices. Built in power meter, real-time display of voltage, current, power and power factor and real-time upload to mobiles phones for remote monitoring, with overvoltage protection and overcurrent protection, WIF1 transmission distance of 30m is unobstructed (24GWIFI network), and can cycle Time switch (server control).

Technical features:

When the voltage exceeds 260V does not start, in use exceeds 260V

automatically jumps open disconnect can be opened manually and APP).

When the current exceeds 35A, it automatically jumps off (after disconnecting, it can be turned on manually and by APP).

In the same - WiFi LAN can be automatically connected to the network through the APP after the matching is completed.

Support RS232DR9 interface, baud rate can be set (4800-128000, default 9600).

When the device suddenly power off, the data will be stored automatically.

Technical parameters:

Power input conditions (single-phase 3-wire): AC90-265V50-60HZ two-phase (3-wire: zero, fire, ground)

Number of channels: 8-way relay controlled, 1-way universal socket directly connected, single channel rated output maximum current application: 16A

The controlled output of the relay can withstand maximum single channel power/total power: 3500W/7700W (the total power will be displayed on the display screen, please observe carefully)

Output power socket specification: flame-retardant ABS material, can withstand a maximum current of 16A, made of sulfonic copper material, standard universal socket

Interval time/timing time of each switch: 12 seconds Output relay contact current: 40A240VAC

Appearance specifications:

Weight: 3.25 kg

Size: 48x19x5 (cm)
