VS212

Features:

1. Large three-way drive three-way frequency system, equipped with WPE wave diameter isometric sound guide

2. Middle and high frequency coaxial structure, so that the sound image is accurate

3. Presettable Rigging pendants

4. With WCT (Wavefront Coupling Technology)

5、With APS angle preset function

6、With FMM monitor mode technology and +15° front panel angle adjustment

Technical parameters:

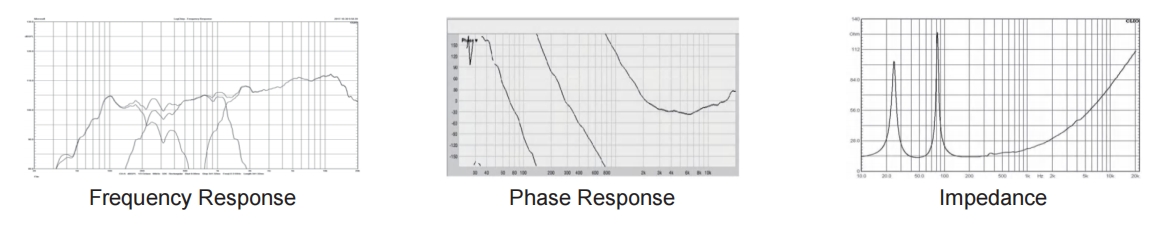

Frequency response: 50 Hz ~ 18 kHz (±3 dB )  40 Hz ~ 20 kHz (-10 dB )

Nominal directivity (-6 dB): 90°(H),7.5°(V Adjustable)

Sensitivity (@ 1w/1m): HF/ MF/LF: 110 dB SPL/105 dB SPL/98 dB SPL

Power rating:MF/LF: 160W/350W/900W

Impedance: HF/MF/LF: 16/16/16 ohm

Maximum SPL: HF: 132/142 dB SPL peak

                         MF: 130/136 dB SPL peak

                         LF: 127/ 133 dB SPL peak

Transducers: HF:2x3" Phase Correction compression driver

                     MF:1x10" All Condition Woofer Midrange

                     LF:2x12"All Condition Woofer

Physical data:

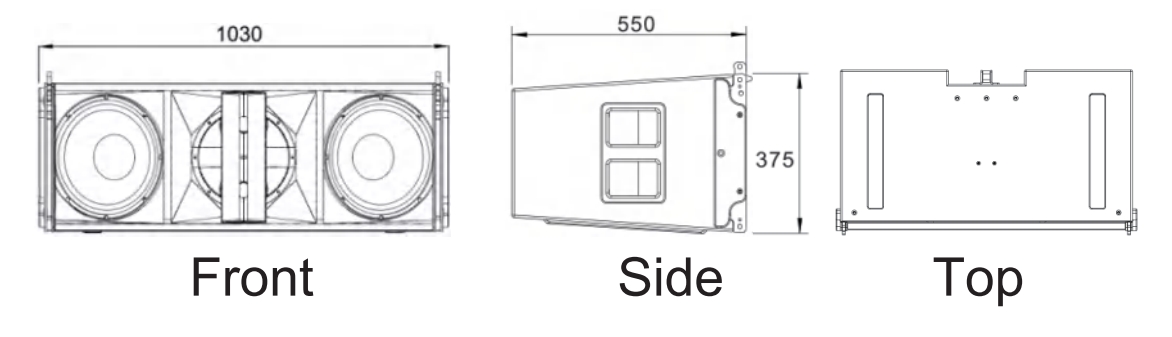

Dimensions: 1030x550x375mm

Weight: 58kg

Connectors: 2x7 core WP7 speaker stand, 2x8 core Neutrik NL8 speaker stand

Speaker Cables: WP7:1-2+…LF, 3-4+…MF, 5-6+…HF NL8:1+1-…LF, 2+. 4+4-... N/C

Material: Imported multi-plywood Environmentalwaterproof and anti corrosion coatings

Finish: Black Polyurea paintings

Grille: Black epoxy mesh grille with acoustically reticulated cloth

Mesh: DPR (Double perforation Rate) double perforation rate technology design, in which the perforation rate of the middle and high transmission area is more than 90%, which greatly improves the sound transmission efficiency and reduces the acoustic crosstalk of the mesh.

Angles: 0、1、2、3、4、5、6、7.5°Adjustable

Application:

Turing performance、stadiums, theaters
