      PS10P



      ApplicationsFeature
      Small FOH

      Rotatable 80 x 50°directivity horn

      Preamplifier circuit technology

      Phase Coherent Technology

      MLC(Microphones&Line Combined Input)

      D-AMP (Class D Amp lifier) Digital Amplifier Circuit Technology

      Elastic bass

      FCT(Full frequency Coherent Technology)

      Selfpowered full range speaker

      Long throw rubber edge LF driver

      Stage Monitor
      Near-Field Sound






      TransducersNominal directivityMaximum SPL

      Technical parameters

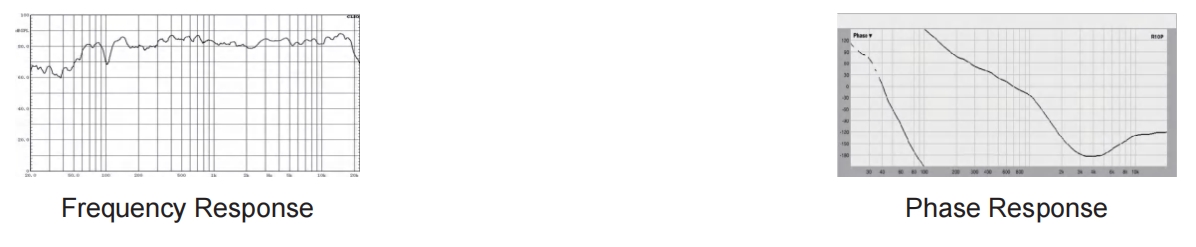

      Frequency response55Hz~ 18 kHz (±3dB ) ；50Hz ~ 20 kHz(-10dB )

      LF:1x10" All Condition Woofer

      HF:1x1.75" Phase Correction



      80°(H)x50°(V)Constant Directivity

      118 dB/128dB SPL peak

      Power Rating 2000W
      SNR

      ≥95dB


      Input connectors XLR Female Input
      Impedance20kΩBalanced/10kΩUnbalanced
      Output electric circuitClass D circult





      MaterialFinishGrilleGrille

      Physical data

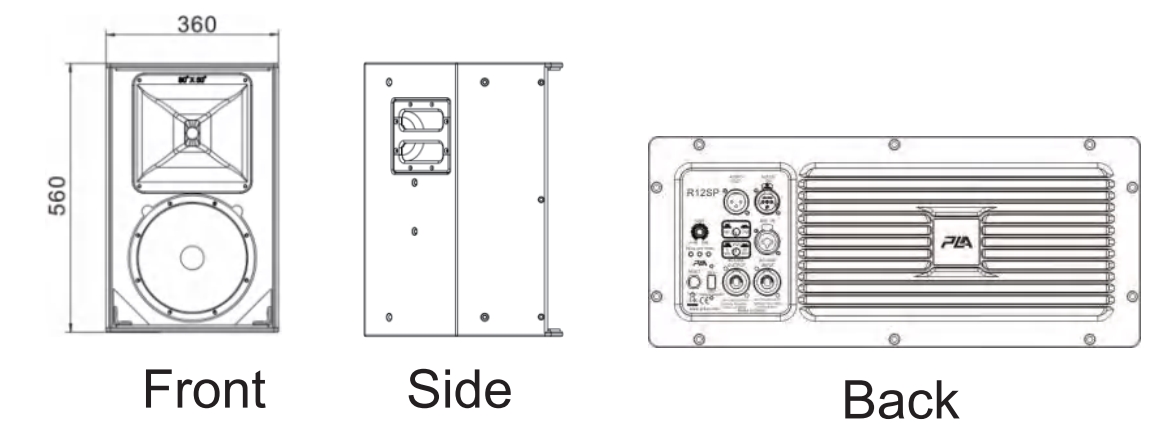

      Dimensions360x410x560mm
      Weight24Kg
      Imported multi-plywood Environmental waterproof and anti corrosion coatings
      Black Polyurea paintings

      Black epoxy mesh grille with acoustically reticulated clot
      DPR(Double Perforation Rate )technology design, in which theperforation rate of the middle and high transmission area ismore than 90%,Greatly improves the sound transmissionefficiency and reduces the acoustic crosstalk of the surfacegrid.
