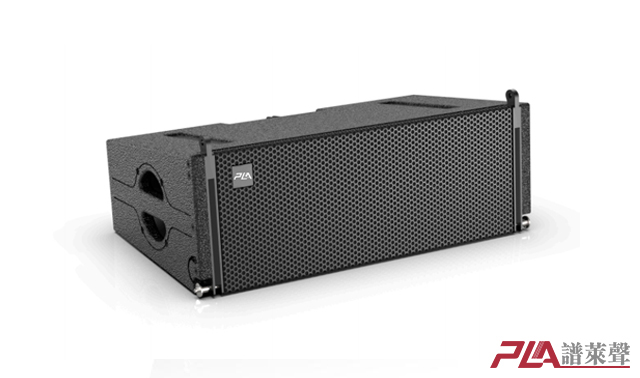

LS208

Applications	Feature
Touring performance Theatre Church Multipurpose hall	Extremely compact , Small enclosure, light weight;Configuration of WPE wavepath equidistant acoustic guide
	All neodymium high sensitivity unit,great dynamic margins
	With WCT (Wavefront Coupling Technology)
	With APS angle preset function
	With FMM monitor mode technology and +15° front panel angle adjustment

Technical parameters

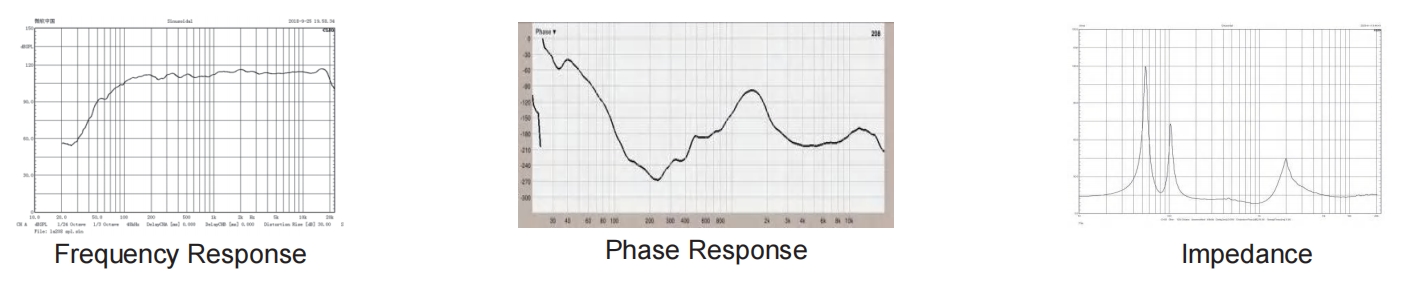

Frequency response	60 Hz ～ 16 kHz (±3dB)；50 Hz ～ 18 kHz（-10dB）
Nominal directivity(-6dB)	100°(H)
Sensitivity (@1w/1m)	HF/LF: 110dB SPL/ 96dB SPL
Power Rating	HF/LF:120W/500W(AES)
Impedance	HF/LF: 16/16 ohm
Maximum SPL	HF:136 dB SPL peak LF:130 dB SPL peak
Transducers	LF:2x8" All Condition Woofer HF:1x3" Phase Correction compression driver

Physical data

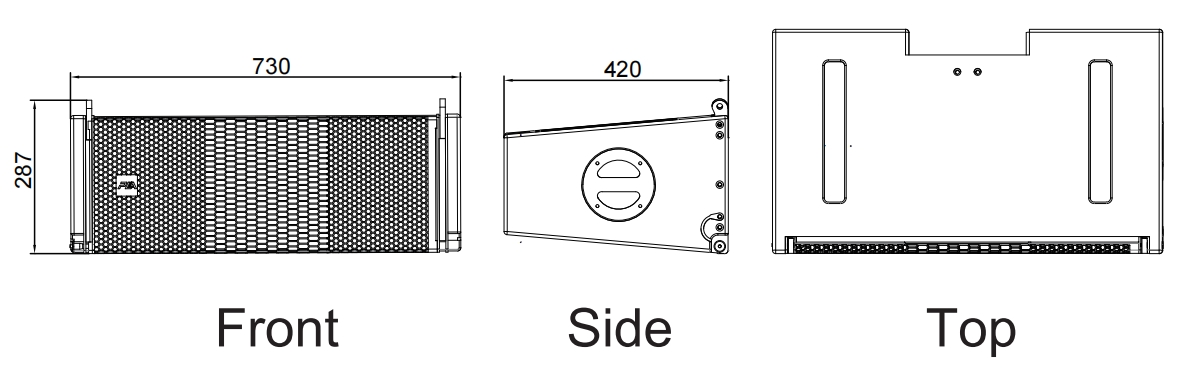

Dimensions	730x420x287mm
Weight	23.5 kg
Connectors	NEUTRIK NL4MP*2
Speaker Cables	1+1-...
Material	Imported multi-plywood Environmental waterproof and anti corrosion coatings
Finsh	Black Polyurea paintings
Grille	DPR(Double Perforation Rate )technology design, in which theperforation rate of the middle and high transmission area ismore than 90%,Greatly improves the sound transmissionefficiency and reduces the acoustic crosstalk of the surfacegrid.
Angles	0、1、2、3、4、5、6、7、8、9、10°Adjustable
