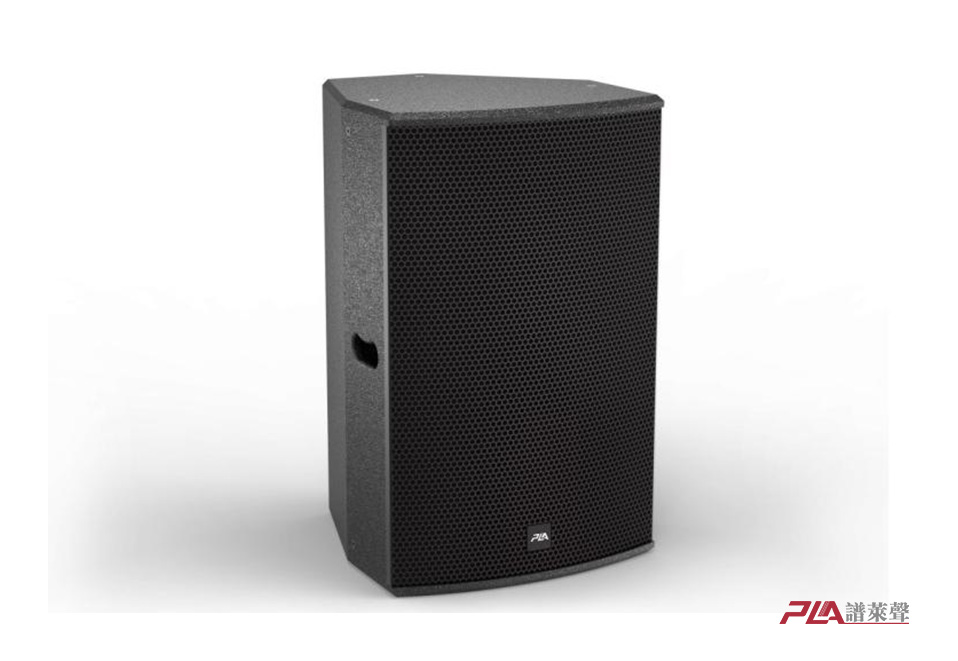

      PS15P


      ApplicationsFeature
      Small FOH

      Rotatable 80 x 50°directivity horn

      Preamplifier circuit technology

      Phase Coherent Technology

      MLC(Microphones&Line Combined Input)

      D-AMP (Class D Amp lifier) Digital Amplifier Circuit Technology

      Elastic bass

      FCT(Full frequency Coherent Technology)

      Selfpowered full range speaker

      Long throw rubber edge LF driver

      Stage Monitor
      Near-Field Sound





      TransducersMaximum

      Technical parameters

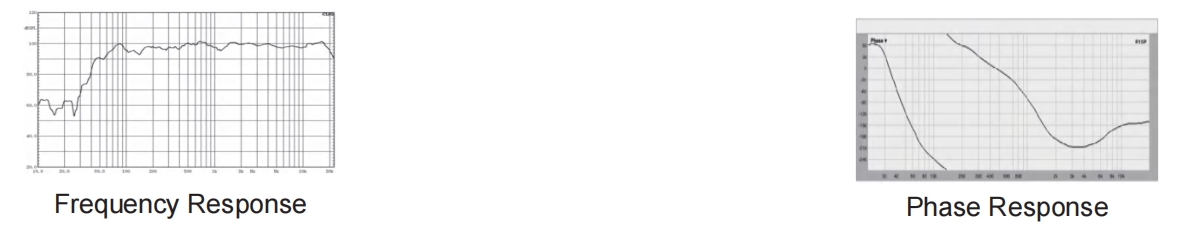

      Frequency response50Hz~ 18 kHz (±3dB ) ；30Hz ~ 20 kHz(-10dB )

      LF:1x15" All Condition Woofer

      HF:1x3" Phase Correction compression driver


      Nominal Impedance80°(H)x50°(V)Constant Directivity
      123dB/133 dB SPL peak

      Power Rating2000W
      SNR

      ≥95dB


      Input connectorsXLR Female Input
      Impedance20kΩBalanced/10kΩUnbalanced
      Output electric circuitClass D circult





      FinishCover

      Physical data

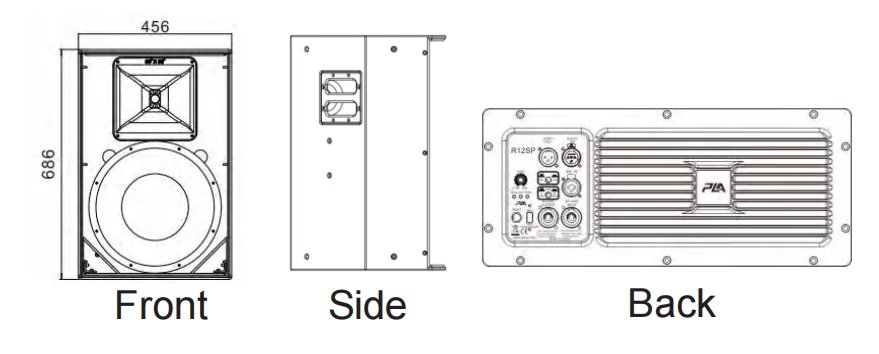

      Dimensions456x445x686mm
      Weight31Kg
      MaterialImported multi-plywood Environmental waterproof and anti corrosion coatings
      Imported multi-plywood Environmental waterproof and anti corrosion coatings
      Black Polyurea paintings

      GrilleDPR(Double Perforation Rate )technology design, in which theperforation rate of the middle and high transmission area ismore than 90%,Greatly improves the sound transmissionefficiency and reduces the acoustic crosstalk of the surfacegrid.
