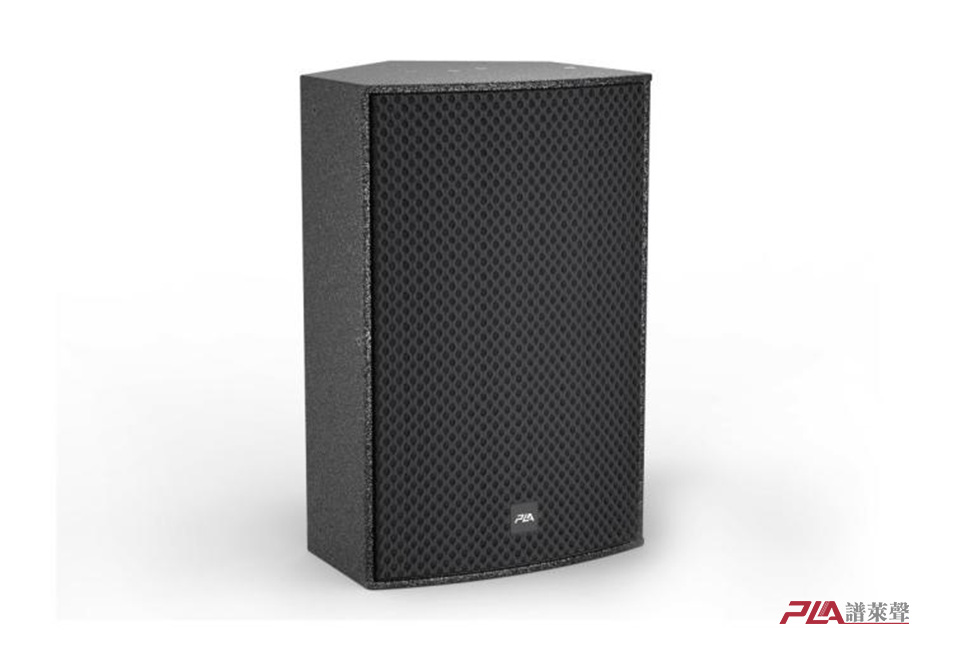

      PS12P



      ApplicationsFeature
      Small FOH

      Rotatable 80 x 50°directivity horn

      Preamplifier circuit technology

      Phase Coherent Technology

      MLC(Microphones&Line Combined Input)

      D-AMP (Class D Amp lifier) Digital Amplifier Circuit Technology

      Elastic bass

      FCT(Full frequency Coherent Technology)

      Selfpowered full range speaker

      Long throw rubber edge LF driver

      Stage Monitor
      Near-Field Sound





      TransducersNominal directivityMaximum SPLPower Rating

      Technical parameters

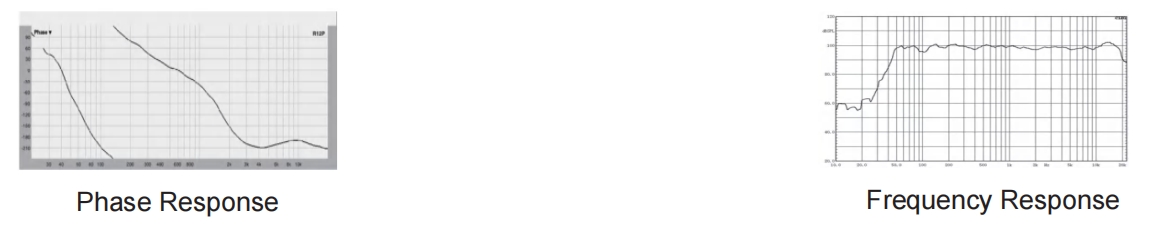

      Frequency response55Hz~ 18 kHz (±3dB ) ；40Hz ~ 20 kHz(-10dB )

      LF:1x12" All Condition Woofer

      HF:1x1.75" Phase Correction



      80°(H)x50°(V)Constant Directivity
      122dB/132dB SPL peak

      2000W



      SNR

      ≥95dB


      Input connectorsXLR Female Input
      Impedance20kΩBalanced/10kΩUnbalanced
      Output electric circuitClass D circult





      MaterialFinishGrilleGrille

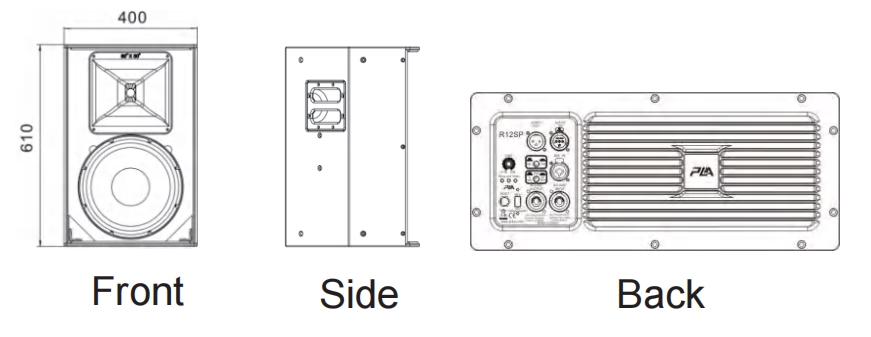

      Physical data

      Dimensions400x410x610mm
      Weight27Kg
      Imported multi-plywood Environmental waterproof and anti corrosion coatings
      Black Polyurea paintings

      Black epoxy mesh grille with acoustically reticulated cloth
      DPR(Double Perforation Rate )technology design, in which theperforation rate of the middle and high transmission area ismore than 90%,Greatly improves the sound transmissionefficiency and reduces the acoustic crosstalk of the surfacegrid.
