Theater

multipurpose hall

Church

Karaoke

Front Zone and Delayed Fill-in

Excellent vocal performance

1.75"Phase Correction HF compression driver

Low frequency response extend to 55Hz

With CPS (Coaxial Point Source) technology

Technical parameters

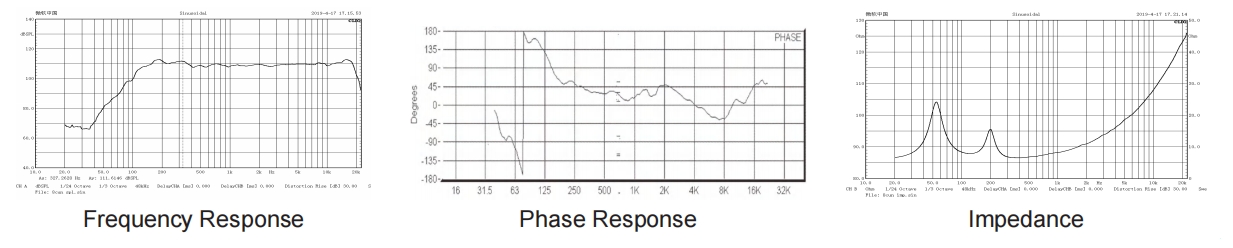

Frequency response

80 Hz ~ 18 kHz (± 3 dB ) ；55 Hz ~ 20 kHz (-10 dB )

Nominal Coverage(-6dB)

Sensitivity (@1w/1m)

Power Rating

Impedance

Maximum SPL

Transducers

80°（cone）

93 dB SPL

250W

8 ohm

117 dB/123 dB SPL peak

LF:1x8" All Condition Woofer

HF:1x1.75"Phase Correction HF compression driver

Power Input

Connectors

Speaker cables

NEUTRIK NL4MP*2

1+1-

Appearance

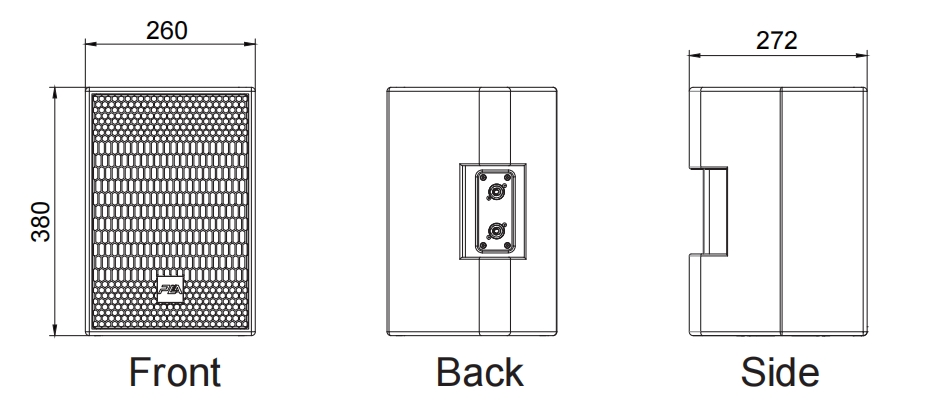

Dimension

Weight

Material

Finsh

Grille

Nstallati on

260x272x380mm

7.4 kg

15mm，18mm  multi-plywood

Black polyurea paintings

DPR(Double Perforation Rate )technology design, in which theperforation rate of the middle and high transmission area ismore than 90%,Greatly improves the sound transmissionefficiency and reduces the acoustic crosstalk of the surfacegrid.

Pole socket and for multiple flying points
