      LS110





      ApplicationsFeature
      Touring performanceExtremely compact , Small enclosure, light weight;Configuration of WPE wavepath equidistant ac
      TheatreAll neodymium high sensitivity unit,great dynamic margins
      ChurchTouring performance、Theatre、Multipurpose hall、Church
      Multipurpose hallWith WCT (Wavefront Coupling Technology)





      Technical parameters

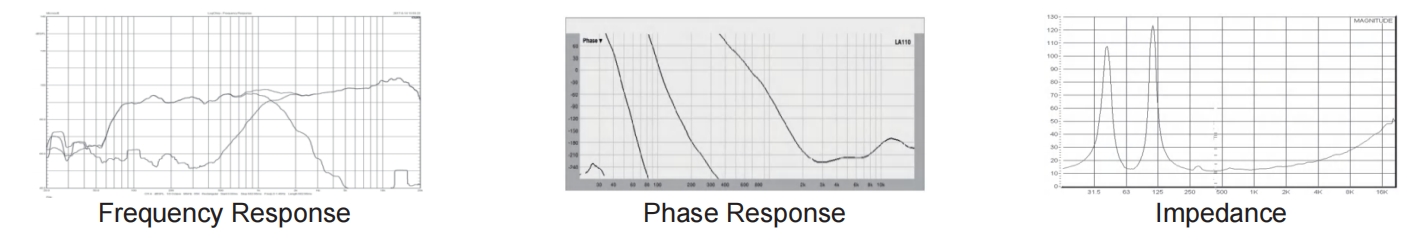

      Frequency response60 Hz-18 kHz(+3 dB) 50 Hz-20 kHz(-10 dB)
      Nominal directivity(-6dB)100°(H) 10°(V) adjustable
      Sensitivity (@1w/1m)HF/LF:112dB/103dB SPL
      Power RatingHF/LF:80W/350W
      ImpedanceHF/LF:16/16 ohm
      Maximum SPLHF:131/141dB SPL peak LF:128/138dB SPL peak
      Transducers

      LF:1x10" All Condition Woofer

      HF:1x3" Phase Correction compression driver



      Physical data

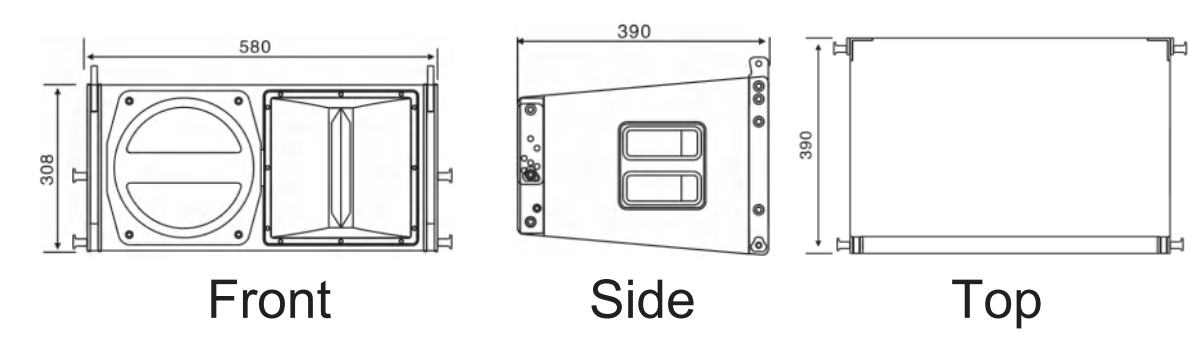

      Dimensions

      580x390x308mm


      Weight22.5Kg
      Connectors

      WP4*2,NEUTRIK NL4MP*2


      Speaker Cables

      WP4:1-2+...LF,3-4+...HF NL4:1+1-...LF,2+2-...HF

      Material

      Imported multi-plywood Environmental waterproof and anti corrosion coatings

      Finsh

      Black Polyurea paintings


      GrilleBlack epoxy mesh grille with acoustically reticulated cloth

      meshDPR (Double perforation Rate) double perforation rate technology design, in which the perforation rate of the mid-high transmitting area is more than 90%, which greatly improves the sound transmission efficiency and reduces the acoustic crosstalk of the grille.
      Rigging

      0、1、2、3、4、5、7.5、10°Adjustable
